| 型号：weicon easy-mix S50 | 粘合材料类型：玻璃、 电子元件、 皮革、 橡胶类、 纤维类、 石材类、 金属类、 其他材质 | 品牌： weicon |
| 执行标准：欧盟 |

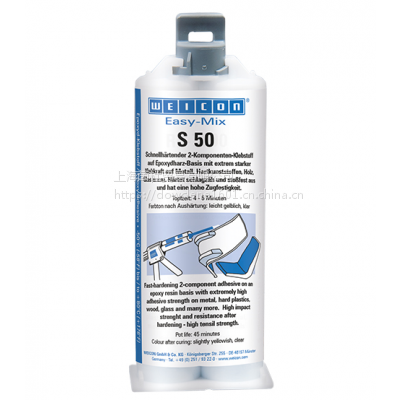

WEICON Easy-Mix S 50 双剂型黏合剂50 ml
For quick repair and maintenance jobs. Ideal too for series
production with short cycle times.
- viscid, self-levelling
- very short pot life (4-5 minutes)
- fast-curing
- colour pale yellow, clear
Purchase data
Item number 10650050
GTIN 4024596000059
Item features
Basis epoxy resin, unfilled
Nature viscid
Supplied in double cartridge
Content 50 ml
Mixing ratio by volume (Resin/Hardener) 1 : 1
Pot life with 10 ml material at +20°C 4-5 Min.
Density of the mixture 1,15 g/cm?
Viscosity of the mixture at +20°C 8500 mPa·s
Processing temperature +10 bis +30 °C
Curing temperature +6 bis +40 °C
Colour slightly yellow, clear
Gap covering power to max. 2 mm
Handling strength (35% strength/+20°C) after 30 Min.
Capable of bearing mechanical loads(50% strength/+20°C) after 1 h
Final strength (*** strength/+20°C) after 1 day(s)
Average strength of the pure epoxy acc. to DIN 53281-83
Pressure 9 MPa
Tensile 40 MPa
Torsion 58 MPa
Shore hardness D 65
Average tensile shear strength as per DIN 53283 on
Steel, sand-blasted 20 N/mm?
Aluminium, sand-blasted 19 N/mm?
Rigid PVC, roughened 13 N/mm?
Temperature resistance -50 bis +80 °C
